Understanding Rapid Prototyping: Key Concepts and Benefits
I remember the first time I truly grasped what rapid prototyping could do for my product development process. I was working on a custom bracket for my Ender 3, and instead of the traditional approach of sketching, CAD modeling, then waiting weeks for machined parts, I had a physical prototype in my hands within hours. That’s when it clicked—this wasn’t just about 3D printing; it was about fundamentally changing how we approach innovation.
Rapid prototyping is essentially the fast creation of physical models or prototypes directly from digital designs, primarily using additive manufacturing technologies like 3D printing. But let me tell you, it’s so much more than just hitting “print” on your computer. It’s a methodology that compresses the traditional design-test-iterate cycle from weeks or months down to days or even hours.
The core principle is simple: get your ideas into physical form as quickly and cost-effectively as possible. Traditional prototyping might involve expensive tooling, machining, or outsourced manufacturing that could take forever and cost a fortune. With rapid prototyping, you can literally go from concept to holding a physical part in the same day.
The benefits are game-changing. First, there’s the obvious time savings—I’ve seen development cycles reduced by up to 75% (The Manufacturer). But what really excites me is the cost reduction for early-stage testing. Instead of committing thousands to traditional tooling only to discover a design flaw, you can iterate through multiple versions for the cost of some filament and electricity.

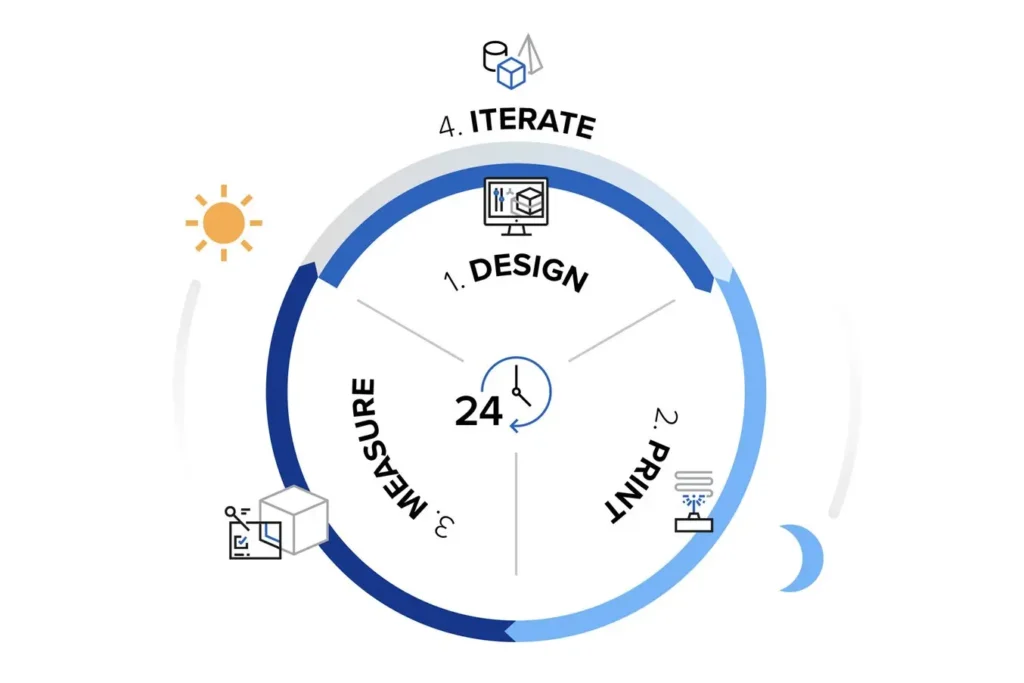

The real magic happens in the iteration speed. When I can print three different versions of a part overnight, test them the next morning, and have an improved design printing by lunch, that’s when innovation truly accelerates. You start thinking differently about design constraints, too—suddenly complex geometries that would be impossible or expensive to machine become trivial to prototype. For anyone serious about product development, understanding rapid prototyping isn’t optional anymore. It’s become the foundation of modern innovation, allowing us to fail fast, learn faster, and ultimately create better products.
Different Methods of Rapid Prototyping: A Comparative Overview
When I first dove into rapid prototyping about five years ago, I was honestly overwhelmed by all the different methods available. I remember standing in my garage, staring at my first Ender 3, wondering if FDM was even the right choice for what I was trying to build. Spoiler alert: sometimes it was, sometimes it definitely wasn’t.
Let me break down the main rapid prototyping methods I’ve worked with, because each one has its sweet spot—and its frustrating limitations.

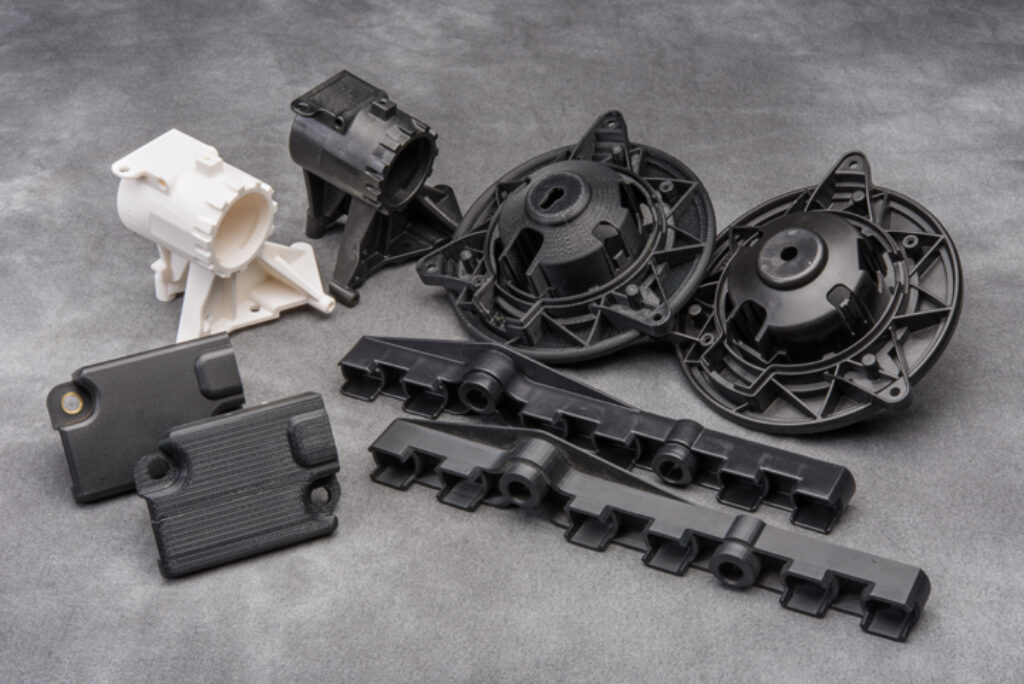

FDM (Fused Deposition Modeling) is where most of us start, and for good reason. It’s accessible, relatively cheap, and perfect for those “let’s see if this idea actually works” moments. I’ve cranked out hundreds of functional prototypes on my FDM printers, from simple brackets to complex mechanical assemblies. The trade-off? Layer lines are always visible, and forget about super fine details. When I need something quick and dirty to test fit and function, FDM wins every time.
SLA (Stereolithography) changed my game completely when I finally invested in a resin printer. The surface finish is incredible—almost injection-molded smooth—and the detail resolution can reach down to 0.01mm on good machines. Recent advances in 3D printing technology are making these systems even more precise. But here’s what they don’t tell you: the post-processing is a pain, the resin smells terrible, and you need proper ventilation. I use SLA when client presentations matter or when I need to test tiny mechanical features.
SLS (Selective Laser Sintering) is the method I wish I could afford to have in-house. The parts come out strong, no support structures needed, and you can actually use them for functional testing under real stress. I’ve outsourced SLS jobs for automotive prototypes, and the durability is impressive. The downside? It’s expensive and typically requires service bureaus unless you’ve got serious budget.
CNC machining might seem old-school compared to 3D printing, but it’s still king for metal prototypes and when you need that “final part” feel. I learned this the hard way when a 3D printed prototype fooled me into thinking my design was solid, only to fail spectacularly when machined in aluminum.
The key is matching the method to your specific needs. Speed? FDM. Detail? SLA. Strength? SLS or CNC. I keep multiple methods in my toolkit because rapid prototyping isn’t one-size-fits-all—it’s about picking the right tool for each iteration of your design journey.
| Feature | FDM (Fused Deposition Modeling) | SLA (Stereolithography) | SLS (Selective Laser Sintering) | CNC Machining |
|---|---|---|---|---|
| Resolution | ★★☆☆☆ (Acceptable for basic forms) | ★★★★★ (Exceptional detail) | ★★★★☆ (Very good detail, less fine than SLA) | ★★★★★ (Excellent precision) |
| Accuracy | ★★★★☆ (Good for functional parts) | ★★★★★ (Extremely high precision) | ★★★★★ (Outstanding dimensional accuracy) | ★★★★★ (Unmatched precision for machining) |
| Surface Finish | ★★☆☆☆ (Visible layer lines, rough) | ★★★★★ (Incredibly smooth, often presentation-ready) | ★★★★☆ (Slightly granular, but smooth post-processing) | ★★★★★ (Varies but can be exceptionally smooth) |
| Ease of Use | ★★★★★ (Most accessible for beginners) | ★★★★★ (Relatively user-friendly, but post-processing adds complexity) | ★★★★☆ (Requires more specialized knowledge and setup) | ★★★☆☆ (Steeper learning curve, complex setup) |
| Complex Designs | ★★★☆☆ (Good for moderately complex, support structures can be an issue) | ★★★★☆ (Excellent for intricate details, but requires supports) | ★★★★★ (Ideal for highly complex geometries, no supports needed) | ★★★☆☆ (Limited by subtractive nature, less organic complexity) |
| Build Volume | Commonly up to 300x300x600mm (desktop/benchtop printers) | Typically up to 350x200x350mm (desktop/benchtop systems) | Benchtop units up to 165x165x300mm | Highly variable, dependent on machine type and size |
| Materials | Wide range of common thermoplastics like PLA, ABS, PETG, and blends. | Diverse liquid resins (thermosets): standard, engineering (e.g., rigid, flexible, heat-resistant), castable, and specialized medical/dental. | Primarily engineering-grade nylon (PA11, PA12) and its composites; some biocompatible options available. | Vast array: plastics, woods, foams, soft metals (aluminum, brass), and hard metals (steel, titanium) on industrial machines. |
| Applications | Economical proof-of-concept, quick functional tests, and simple parts. | High-fidelity visual prototypes, precise functional models, and parts needing smooth finishes or tight tolerances. | Robust functional prototypes, end-use parts, and complex designs without support constraints. | High-strength structural components, end-use metal parts, and precision tooling. |
| Price Range | Entry-level from ~$200. Professional desktop models $2,000-$8,000; industrial systems start around $15,000. | Hobbyist models from ~$200-$1,000. Professional desktop from $2,500-$10,000; large-format systems $5,000-$25,000. | Benchtop industrial systems start around $30,000 (printer only), with a full ecosystem near $60,000. Traditional industrial units begin at ~$200,000. | Small desktop units from ~$2,000. Industrial machines vary widely; basic engravers under $500, laser cutters from $3,500, and water jet cutters from $20,000. |
Applications of Rapid Prototyping Across Various Industries
When I first started exploring rapid prototyping about five years ago, I thought it was just “fancy 3D printing for engineers.” Boy, was I wrong! The more I dove into this field, the more I realized that rapid prototyping has become the secret weapon across virtually every industry imaginable. Let me share what I’ve discovered through my journey working with companies from automotive giants to tiny medical device startups.
In the automotive world, I’ve seen some absolutely mind-blowing applications. Ford, for instance, uses rapid prototyping not just for testing new car designs, but for creating complex tooling jigs that would normally take months to manufacture. The speed-to-market advantage is incredible – automotive companies are slashing development times by up to 50% using advanced rapid prototyping techniques.
The aerospace industry has taken this even further. NASA’s recent work with their GRX-810 3D-printable superalloy demonstrates how rapid prototyping enables complex geometries that were impossible with traditional manufacturing. The smaller aerospace contractors are saying that they can now prototype rocket components in days rather than months, fundamentally changing how they approach R&D.
But here’s where it gets really exciting – the healthcare sector. The precision and personalization possible with 3D-printed orthotics has genuinely amazed me. One pediatric chiropractor I spoke with said they can now create patient-specific braces for their scoliosis.

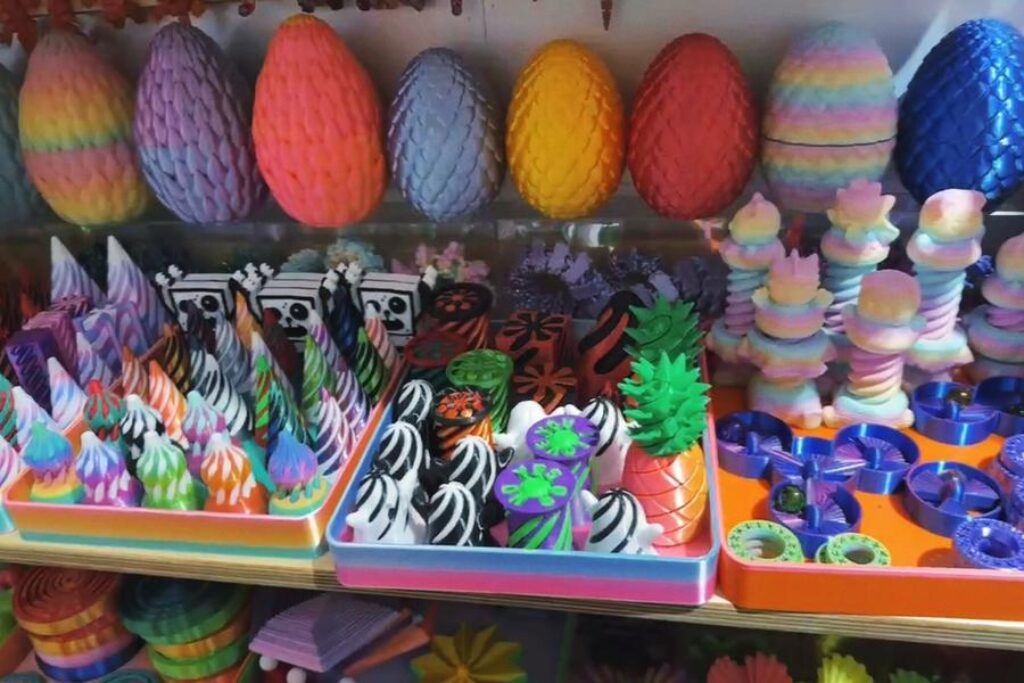

Even consumer products have been transformed. I’ve seen toy companies go from concept sketch to working prototype in 48 hours using rapid prototyping techniques. The ability to iterate quickly means better products reach market faster, and frankly, that’s good for everyone.
What strikes me most is how rapid prototyping isn’t just changing what we make – it’s changing how we think about making things. The traditional “design, build, test, repeat” cycle has become this fluid, almost organic process where ideas can be validated and refined at lightning speed.
Future Trends in Rapid Prototyping: Innovations on the Horizon
Looking ahead into the next few years, I can honestly say I’ve never been more excited about where rapid prototyping is heading. After watching this field evolve dramatically over the past decade, the innovations coming down the pipeline are absolutely mind-blowing.
AI integration is probably the biggest game-changer I’m seeing right now. Companies like Rapid Fusion are already rolling out AI print assistants that optimize everything from support structures to print settings automatically.
The bioprinting revolution is another area where I’m seeing incredible momentum. 3D Systems has been making serious strides with FDA-approved bioprinting breakthroughs that are positioning them for explosive growth. While we’re not quite printing replacement organs yet, the speed of progress makes me think we might be closer than most people realize.
What excites me most is how these technologies are converging. I recently experimented with some parametric design workflows that automatically adjust based on material properties and intended use case. The idea that your CAD software could someday communicate with your printer’s AI to optimize both design and manufacturing parameters simultaneously? That’s the kind of integration that will transform rapid prototyping from a quick-and-dirty process into precision manufacturing.
The next five years are going to be absolutely wild for anyone in our space.
